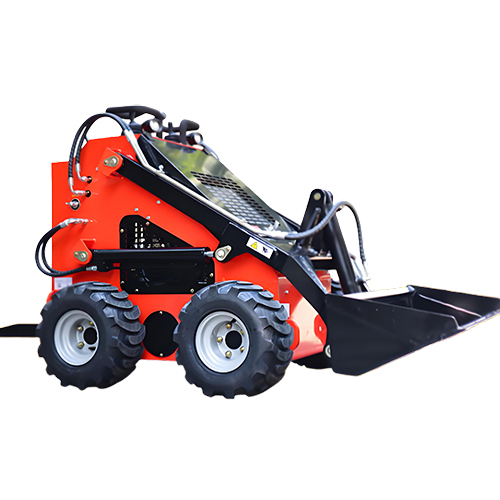

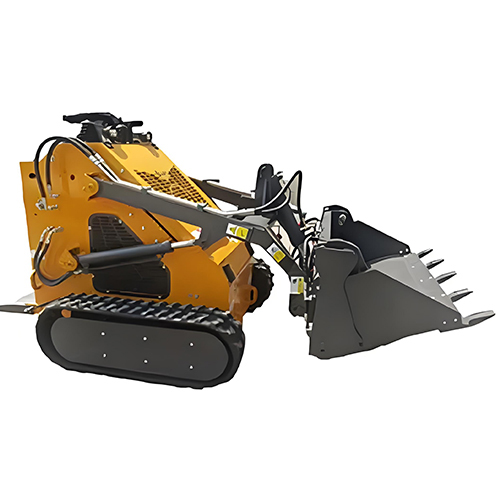

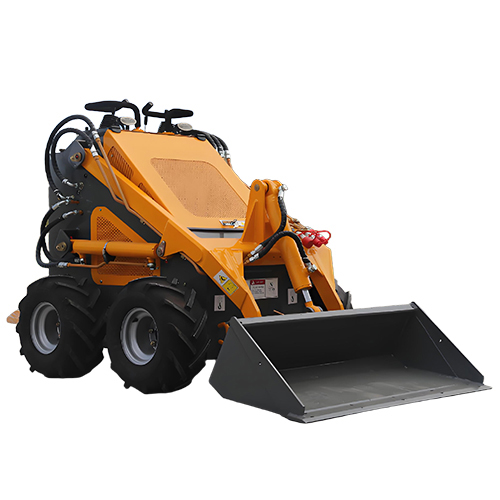

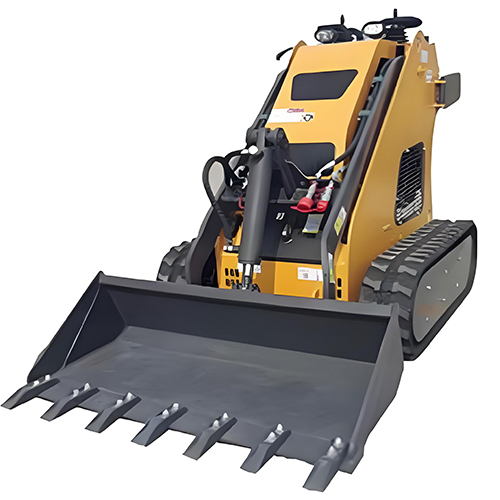

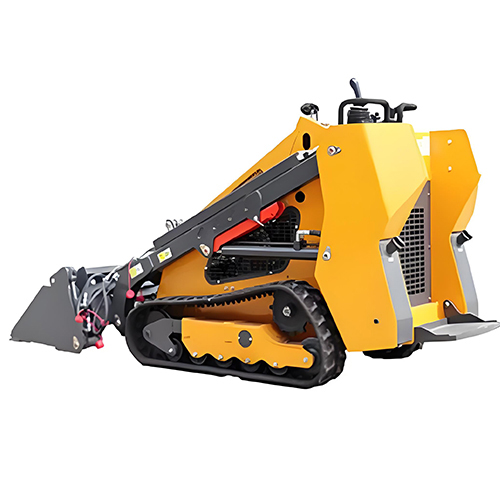

Mini Wheel/Caterpillar Loader

FEATURES
● RELIABLE GASILINE DIESEL ENGINE

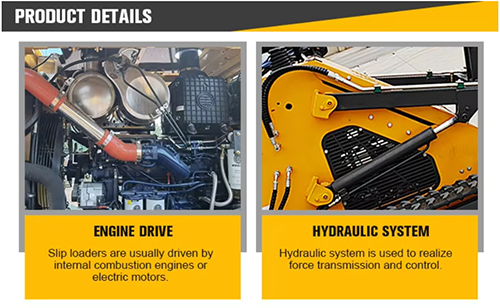

Briggs & Stratton/KUBOTA/Honda/ROTA/Engine, Made in Japan/USA, EPA certified, provides fast cycle times, great digging power and excellent pushing ability.

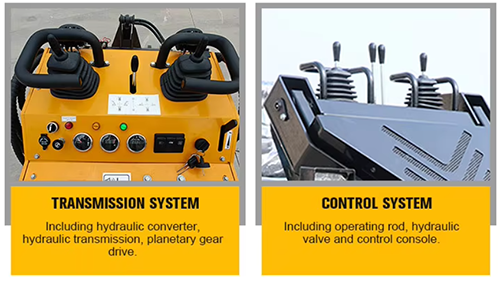

● DUAL RGONOMIC JOYSTICK CONTROLS
Real Dual ergonomic Joystick controls can allows you to easily operate the drive system and the boom at the same time.
● EXCELLENT MANEUVERABLITY
41-in Narrow width maneuver in and out of small spaces where other large traditional machines just can not go.
● OUTSTANDING ACCESS
Easy for operators of different sizes to jump on and off the machine instead of getting into and out of a cab.

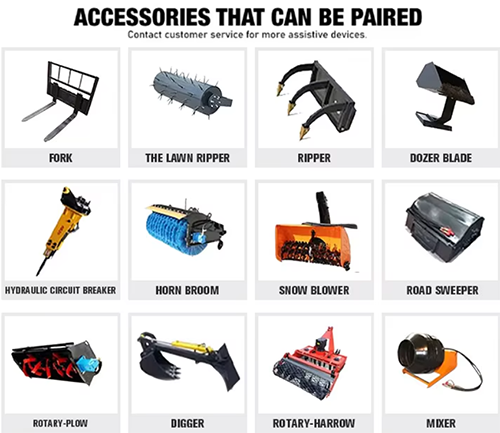

● Multifunctional accessories
Dozens of accessories can be replaced, suitable for different environments, and the control interface is easy to use and master.

		Briggs Stratton 3864	Rato R740
Lifting Capacity KG	350	380	380
Engine Type	HONDA HGX690	Briggs Stratton 3864	Rato R740
Engine Capacity(kw/Hp)	16.5/22.1	18.2/23	15.5KW/21
Displacement cm3/Number of cylinders	688/2		670/2
Rotation speed per minute(rpm)	3600	3600	3600
Maximum torque NM/rpm	38.6/2500	50/3000	45/2500
Cooling method	Air-cooled	Air-cooled	Air-cooled
Fuel/Fuel tank capacity	Gasoline 95#/20L	Gasoline 95#/20L	Gasoline 95#/20L
Drive System	Hydraulic four-wheel drive	Hydraulic four-wheel drive	Hydraulic four-wheel drive
Speed(km/h)	0-6(By Scale)	0-6(By Scale)	0-6(By Scale)
Enhancement of capabilities(kg)	350	300	300
Traction force(kg)	409
Hydraulic drive system(L/bar)	35/200	50/180	50/180
Hydraulic oil tank capacity(L)	40	35	35
Standard Tires	22*11.00-8	18*8.5-8	18*8.5-8
Electrical system(V)	12	12	12
Battery Capacity(Ah)	45	36	36
Braking System	Hydraulic enclosed brake	Hydraulic enclosed brake	Hydraulic enclosed brake
Drive	Skid steering	Skid steering	Skid steering
Hydraulic Cylinder Thrust(KG)	600
Rising Force(KG)	300

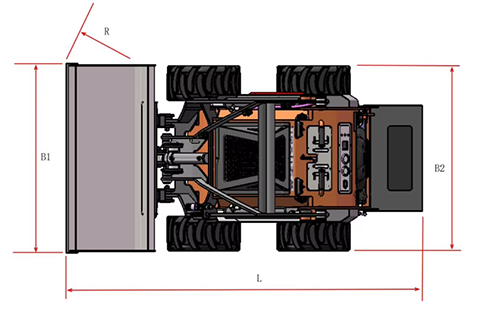

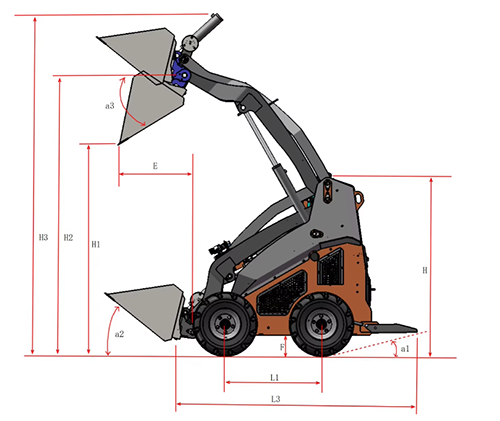

Overall Dimensions(MM)	152510501258	148511501300	148511501300
Weight(KG)	630	830	830
